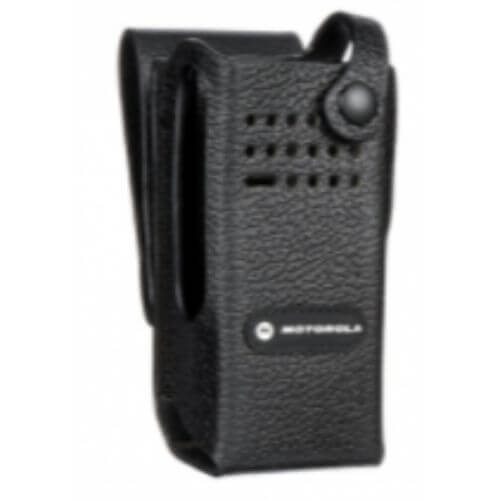

PMLN5846 Leather Carry Case 3 inch Swivel Belt Loop
PMLN5846 XPR7350 Leather Case 3-inch Swivel Belt Loop
These leather carry cases are made of top-grain leather, making them ideal for the most demanding jobs. When paired with audio accessories, carry cases allow you to keep your hands on your daily tasks. This 3-inch swivel model secures a belt loop, allowing the case to swing freely from side to side. The swivel latch system also allows the radio and case to be removed from the belt loop by simply inverting the case and lifting it up and out of the belt loop. Designed for the XPR 7350 non-display radio.
General
| Frequency range | Tx | 156.025–157.425 MHz |
|---|---|---|
| Rx | 156.050–163.275 MHz | |
| Rx (CH70) | 156.525 MHz | |
| RX (AIS) | 162.025 MHz | |
| Usable channel groups | INT, USA, CAN, WX channels | |
| Type of emission | 16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (GMSK) | |
| Current drain (at 7.2 V DC) |
TX (6 W/1 W output) | 1500 mA/700 mA (approx.) |
| RX (Inter SP/Exter SP Max. audio) | 700 mA/350 mA (approx.) | |
| Operating temperature range | –20°C to +60°C; –4˚F to +140˚F | |
| Antenna impedance | 50 Ω | |
| Dimensions (W×H×D) (Projections not included) |
60.9 × 145.8 × 43.8 mm; 2.4 × 5.7 × 1.7 in |
|
| Weight (approximately) | 357 g ; 12.6 oz (With BP-306, antenna, MB-133) |
|
Transmitter
| Output power (Hi/Low) | 6 W/1 W | |
|---|---|---|
| Max. frequency deviation | ±5 kHz | |
| Frequency stability | ±10 ppm | |
| Spurious emissions | –68 dBc typical | |
Receiver
| Sensitivity (at 12 dB SINAD) DSC receiver (at 1% BER) AIS receiver (at 20% PER) |
0.25 μV typical –3 dBμ emf typical –107 dBm |
|
|---|---|---|
| Squelch sensitivity (Threshold) | 0.25 μV typical | |
| Adjacent channel selectivity DSC receiver (at 1% BER) AIS receiver (at 20% PER) |
70 dB typical 73 dBμ emf 50 dB typical |
|
| Spurious response DSC receiver (at 1% BER) AIS receiver (at 20% PER) |
70 dB typical 73 dBμ emf 50 dB typical |
|
| Intermodulation DSC receiver (at 1% BER) AIS receiver (at 20% PER) |
70 dB typical 68 dBμ emf 50 dB typical |
|
| Hum and noise | 40 dB | |
| Audio output power (at 10% distortion) |
Internal SP | 1500 mW typical (8 Ω load) |
| External SP | 350 mW typical (8 Ω load) | |
Measurements made in accordance with TIA/EIA-603. All stated specifications are subject to change without notice or obligation.
Applicable U.S. Military Specifications & IP Rating
| Standard | MIL-810 G | |
|---|---|---|
| Method | Procedure | |
| Low Pressure | 500.5 | I, II |
| High Temperature | 501.5 | I, II |
| Low Temperature | 502.5 | I, II |
| Temperature Shock | 503.5 | I-C |
| Solar Radiation | 505.5 | I |
| Rain Blowing/Drip | 506.5 | I, III |
| Humidity | 507.5 | II |
| Salt Fog | 509.5 | – |
| Dust Blowing | 510.5 | I |
| Immersion | 512.5 | I |
| Vibration | 514.6 | I |
| Shock | 516.6 | I, IV |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
| Ingress Protection Standards | |
|---|---|
| Water | IPX7 (Waterproof protection) |
All stated specifications are subject to change without notice or obligation.
Supplied Accessories
- BP-306 battery pack
- BC-251 battery charger
- AC adapter*
- CP-26 cigarette lighter cable
- MB-133 belt clip
- Antenna
- Hand strap
* May differ depending on version
