PNC360S PoC

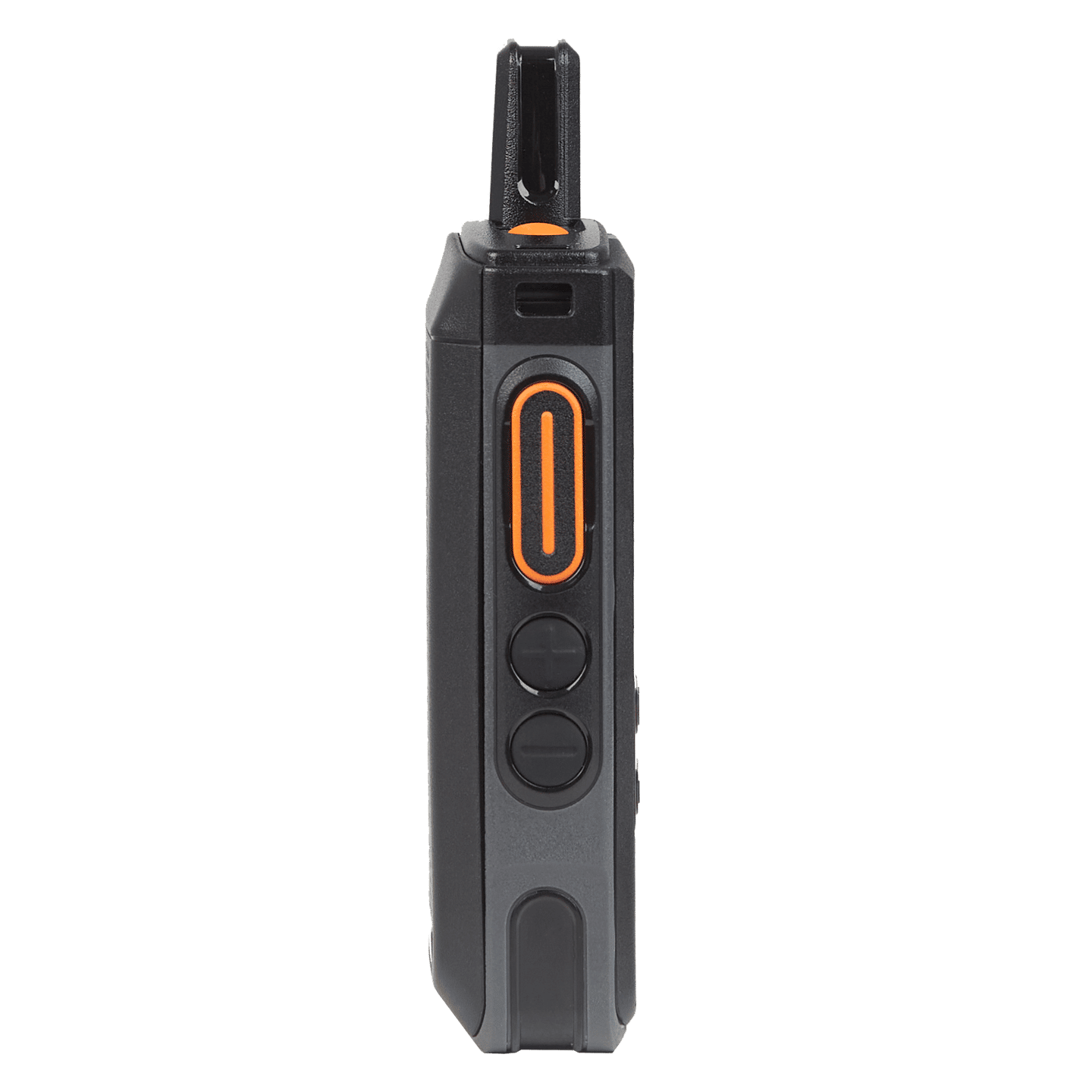

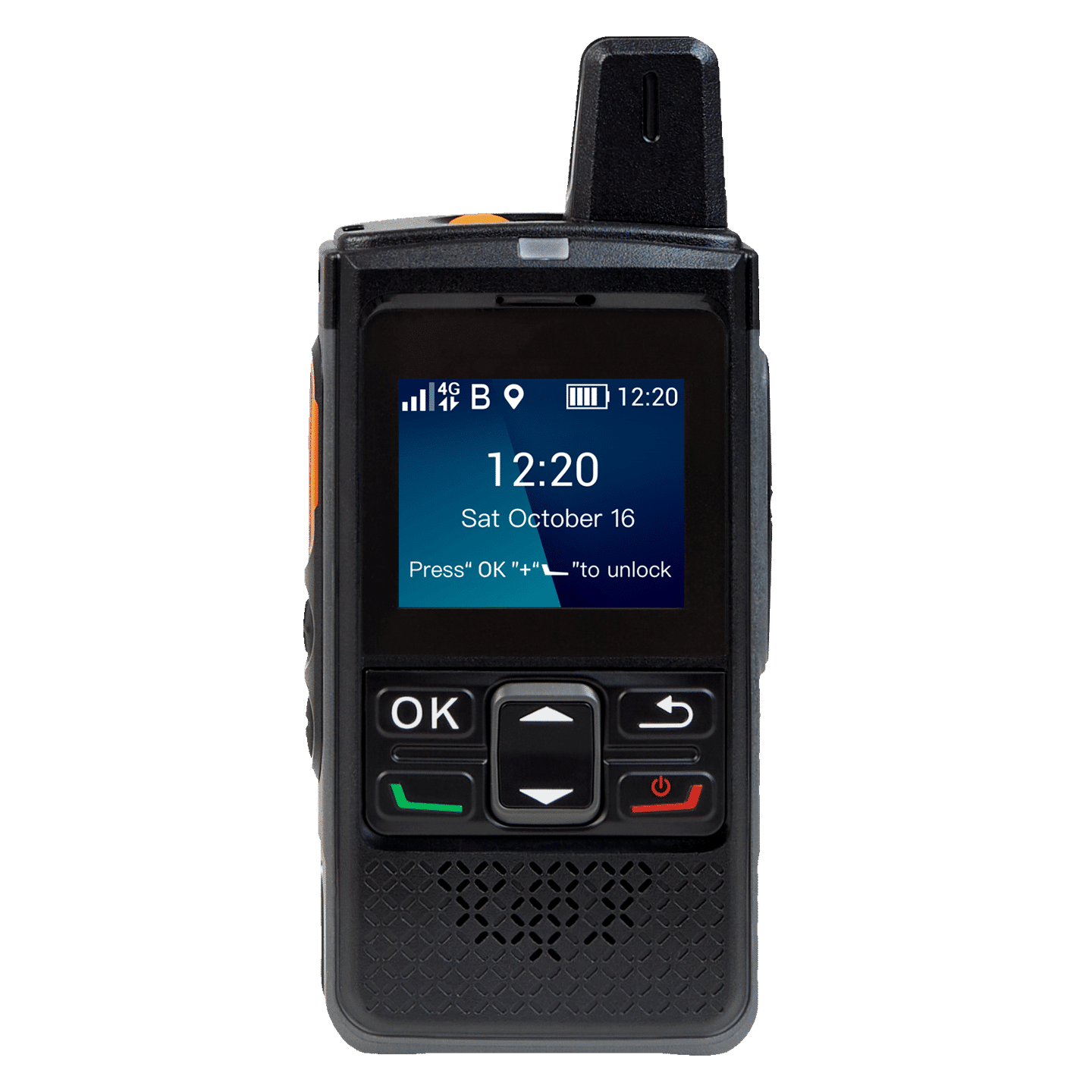

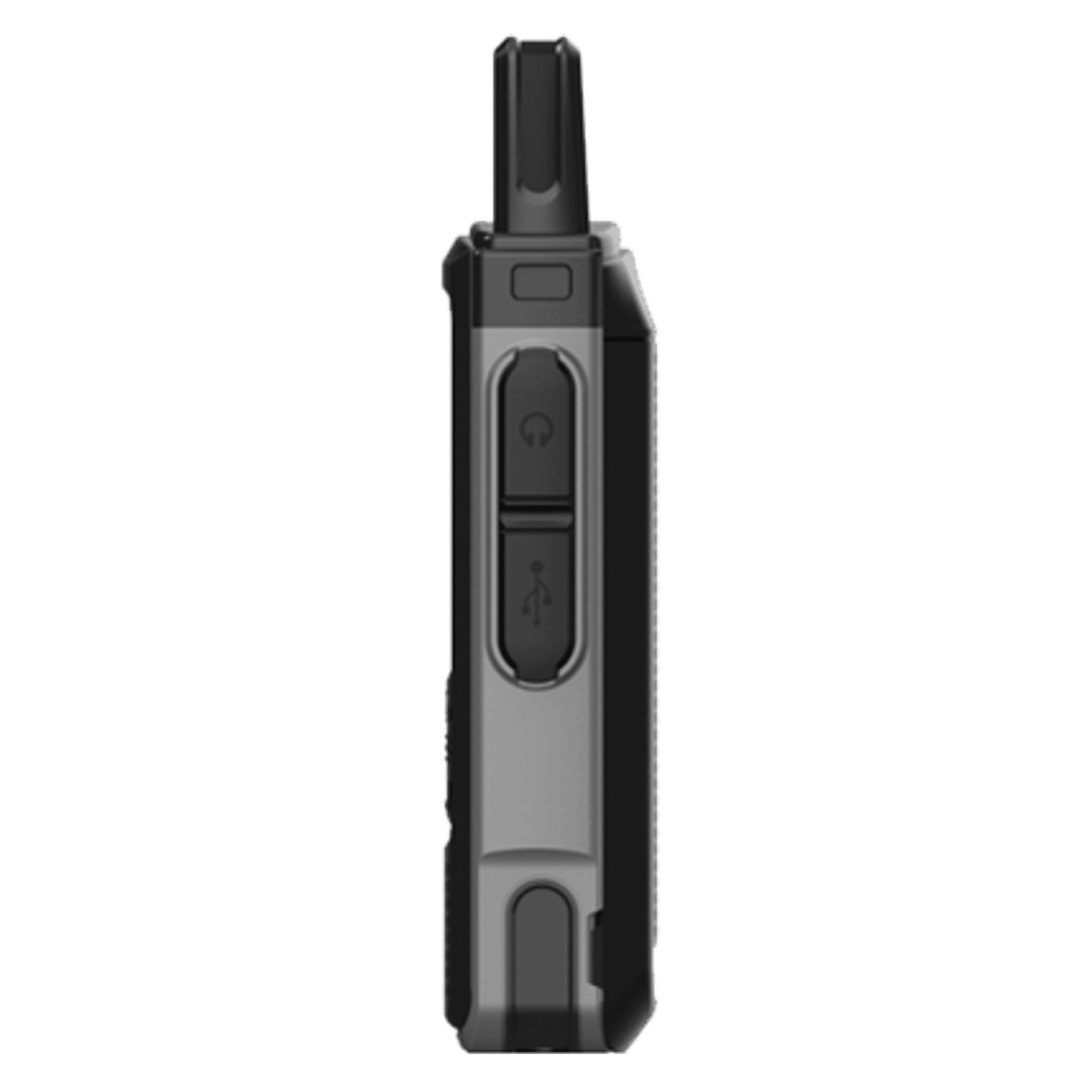

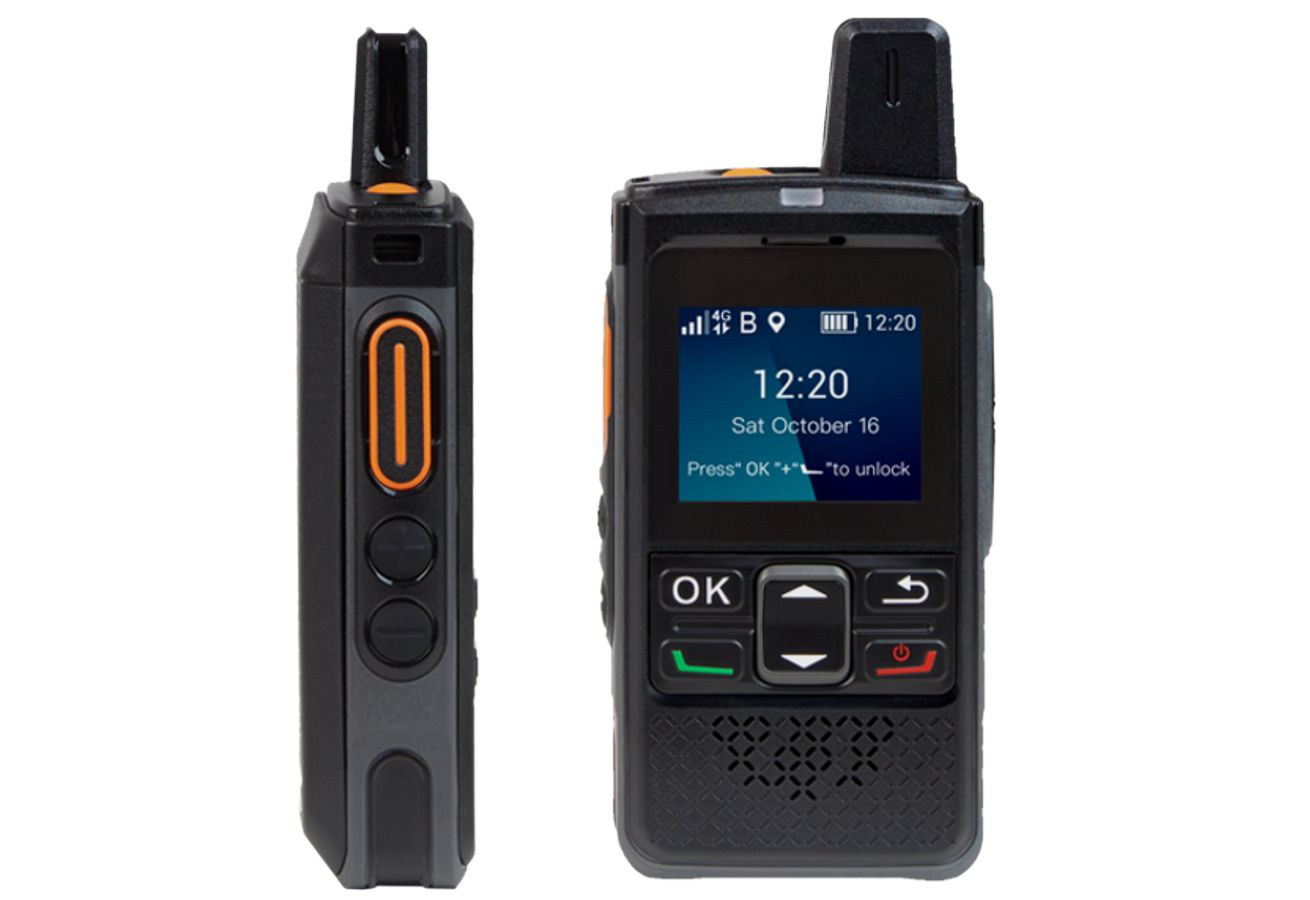

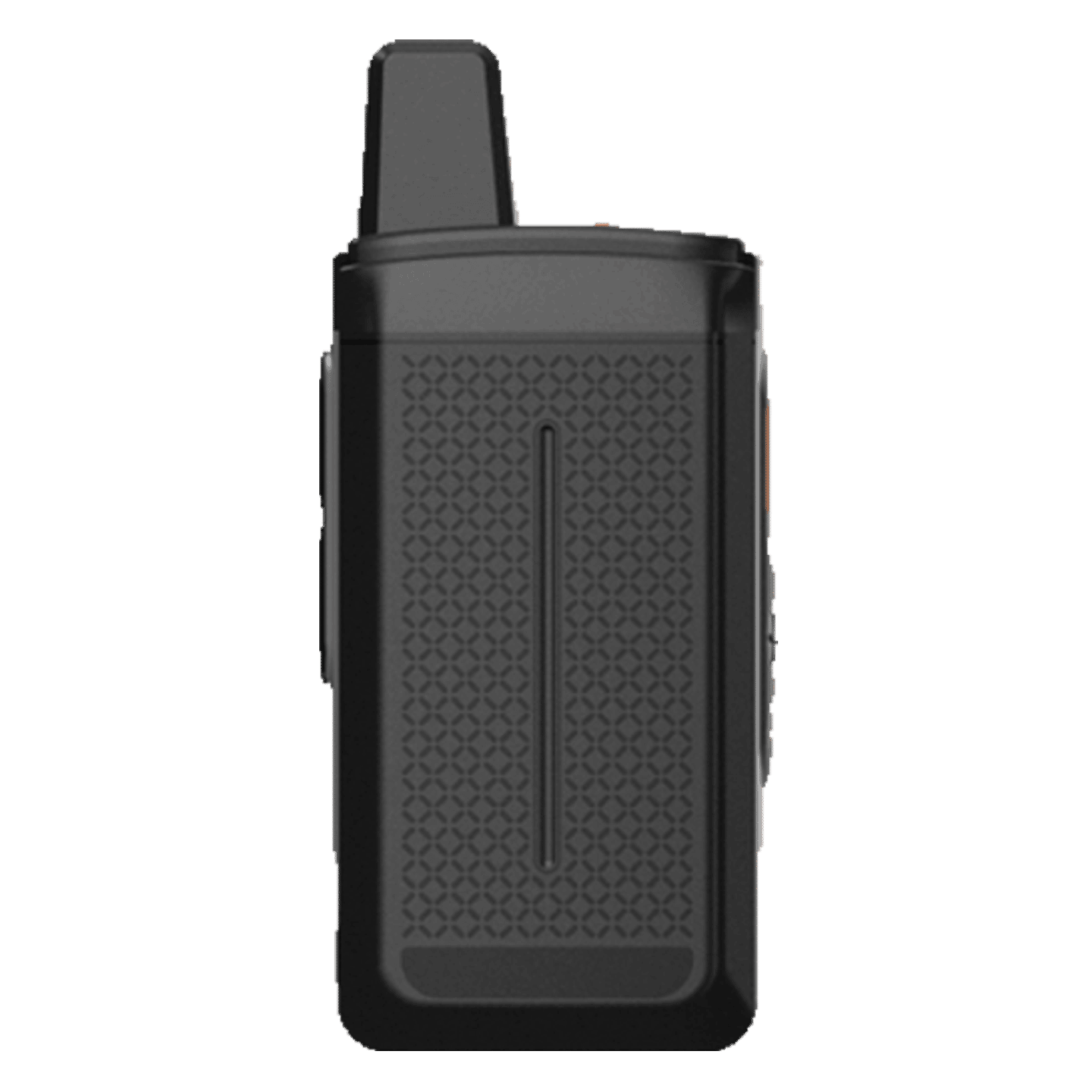

PNC360S PoC Radio Features:
The Hytera PNC360S is an ultra-compact, rugged, and easy-to-operate push-to-talk radio that enables connectivity over 4G/LTE and Wi-Fi for wide-area radio communications. It is cost-effective, and surprisingly feature rich for the price. The compact size enables one-hand operation, and the PNC360 can be carried in pocket, worn on the standard belt clip, or worn on a lanyard.
- Digital noise suppression for clear audio in loud environments
- Rugged and IP67 rated to withstand dirt, dust, and moisture
- Powerful Lithium Polymer battery delivers up to 48 hours of operation time
- Built-in GPS, Bluetooth, and Wi-Fi
Ultra-Compact Push-to-Talk Over Cellular Radio
The PNC360S is an ultra-compact, rugged, and easy-to-operate push-to-talk radio that enables connectivity over 4G/LTE and Wi-Fi for wide-area radio communications. It is cost-effective, and surprisingly feature rich for the price. The compact size enables one-hand operation, and the PNC360 can be carried in pocket, worn on the standard belt clip, or worn on a lanyard. The PNC360S PoC radio is supported on Hytera HALO Dispatch and can be deployed very quickly to deliver these features at a lower cost than traditional radio systems.
The PNC360S and other Hytera PoC devices are part of the Hytera HALO Nationwide PoC solution that uses cellular 4G/LTE infrastructure, and the Hytera HALO OnSite own-your-own PoC platform. The PNC360S is supported on Hytera HALO Dispatch, a powerful web-based GPS dispatch and fleet communications application.
General
| Frequency range | Tx | 156.025–157.425 MHz |
|---|---|---|
| Rx | 156.050–163.275 MHz | |
| Rx (CH70) | 156.525 MHz | |
| RX (AIS) | 162.025 MHz | |
| Usable channel groups | INT, USA, CAN, WX channels | |
| Type of emission | 16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (GMSK) | |
| Current drain (at 7.2 V DC) |
TX (6 W/1 W output) | 1500 mA/700 mA (approx.) |
| RX (Inter SP/Exter SP Max. audio) | 700 mA/350 mA (approx.) | |
| Operating temperature range | –20°C to +60°C; –4˚F to +140˚F | |
| Antenna impedance | 50 Ω | |
| Dimensions (W×H×D) (Projections not included) |
60.9 × 145.8 × 43.8 mm; 2.4 × 5.7 × 1.7 in |
|
| Weight (approximately) | 357 g ; 12.6 oz (With BP-306, antenna, MB-133) |
|
Transmitter
| Output power (Hi/Low) | 6 W/1 W | |
|---|---|---|
| Max. frequency deviation | ±5 kHz | |
| Frequency stability | ±10 ppm | |
| Spurious emissions | –68 dBc typical | |
Receiver
| Sensitivity (at 12 dB SINAD) DSC receiver (at 1% BER) AIS receiver (at 20% PER) |
0.25 μV typical –3 dBμ emf typical –107 dBm |
|
|---|---|---|
| Squelch sensitivity (Threshold) | 0.25 μV typical | |
| Adjacent channel selectivity DSC receiver (at 1% BER) AIS receiver (at 20% PER) |
70 dB typical 73 dBμ emf 50 dB typical |
|
| Spurious response DSC receiver (at 1% BER) AIS receiver (at 20% PER) |
70 dB typical 73 dBμ emf 50 dB typical |
|
| Intermodulation DSC receiver (at 1% BER) AIS receiver (at 20% PER) |
70 dB typical 68 dBμ emf 50 dB typical |
|
| Hum and noise | 40 dB | |
| Audio output power (at 10% distortion) |
Internal SP | 1500 mW typical (8 Ω load) |
| External SP | 350 mW typical (8 Ω load) | |
Measurements made in accordance with TIA/EIA-603. All stated specifications are subject to change without notice or obligation.
Applicable U.S. Military Specifications & IP Rating
| Standard | MIL-810 G | |
|---|---|---|
| Method | Procedure | |
| Low Pressure | 500.5 | I, II |
| High Temperature | 501.5 | I, II |
| Low Temperature | 502.5 | I, II |
| Temperature Shock | 503.5 | I-C |
| Solar Radiation | 505.5 | I |
| Rain Blowing/Drip | 506.5 | I, III |
| Humidity | 507.5 | II |
| Salt Fog | 509.5 | – |
| Dust Blowing | 510.5 | I |
| Immersion | 512.5 | I |
| Vibration | 514.6 | I |
| Shock | 516.6 | I, IV |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
| Ingress Protection Standards | |
|---|---|
| Water | IPX7 (Waterproof protection) |
All stated specifications are subject to change without notice or obligation.
Supplied Accessories
- BP-306 battery pack
- BC-251 battery charger
- AC adapter*
- CP-26 cigarette lighter cable
- MB-133 belt clip
- Antenna
- Hand strap
* May differ depending on version
Related products
-
PNC550 PoC
PNC550 PoC
PNC550 PoC Smart Computer Features:
The Hytera PNC550 is a Push-to-Talk over Cellular (PoC) radio and handheld smart device designed for nationwide business operations and remote workforce communications. The PNC550 combines the advantages of a compact mobile computer with ruggedness, enhanced audio quality, and instant Push-to-Talk group communications of a professional PoC device. It supports Android business apps to provide unified operations and communications in a single device.
- Powerful Handheld Smart Device and Push-to-Talk Radio
- Industry-leading Voice Quality with Digital Noise Suppression
- Supports Instant Group Voice and Video Calling and Texting
- Rugged and Purpose Built for Professional Communications
- Seamless Switching between 4G/LTE and Wi-Fi Networks
- Runs Android Business Apps
-
Hytera HALO Dispatch
Hytera HALO Dispatch
Hytera HALO Dispatch Features:
Hytera HALO Dispatch is a web-based communication and location dispatch application with instant nationwide group calling and real-time GPS location tracking of Hytera PoC Radios and PoC Bodycam Radios.
The dispatch application provides the most flexible calling available with instant group calling and individual calling. Dynamic groups can be quickly created with a simple list selection or geographically by selecting an area on the dispatch map. Track and coordinate remote worker locations with mapped travel routes, geofencing, and time stamps.
-
MNC360 PoC
MNC360 PoC
MNC360 PoC Mobile Radio Features:
The Hytera MNC360 Push-to-Talk over Cellular (PoC) mobile radios are professional-grade communications devices that provide clear push-to-talk communication, instant group calling, and location tracking for reliable and efficient fleet dispatching. Unlike cell-phones, tablets, and handheld devices, the MNC360 is a legal and DOT compliant device for safe communications while driving.
- Safe vehicle use with tactile buttons and handheld microphone for simple push-to-call operation
- Real-time GPS tracking for use with the Hytera HALO Dispatch application
- Emergency call buttons enable one-touch emergency calls to dispatcher and other PoC devices
- Digital noise suppression and high-volume speaker for excellent voice quality in loud vehicles
-

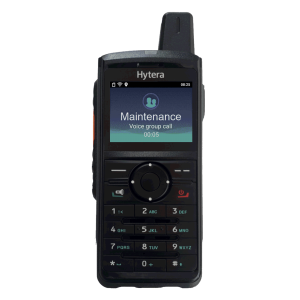

PNC380S PoC
