PNC380S PoC
PNC380S PoC Radio Features:
The feature-rich PNC380S is an easy-to-operate handheld PoC device that utilizes nationwide 4G/LTE cellular and Wi-Fi networks for unlimited coverage and capacity.
- Advanced noise suppression for clear audio in loud environments
- Rugged and IP rated to withstand dirt, dust, and moisture
- Powerful battery delivers up to 18 hours of operation time
- Built-in GPS, Bluetooth, Wi-Fi, and LED flashlight
- PTCRB Certified, AT&T Network Approved
- Full Keyboard
- Car kit option for mounting in vehicles
- High-definition live video
- Improved battery that delivers up to 24 hours of operation
AT&T Network Approved PoC Radio with Video

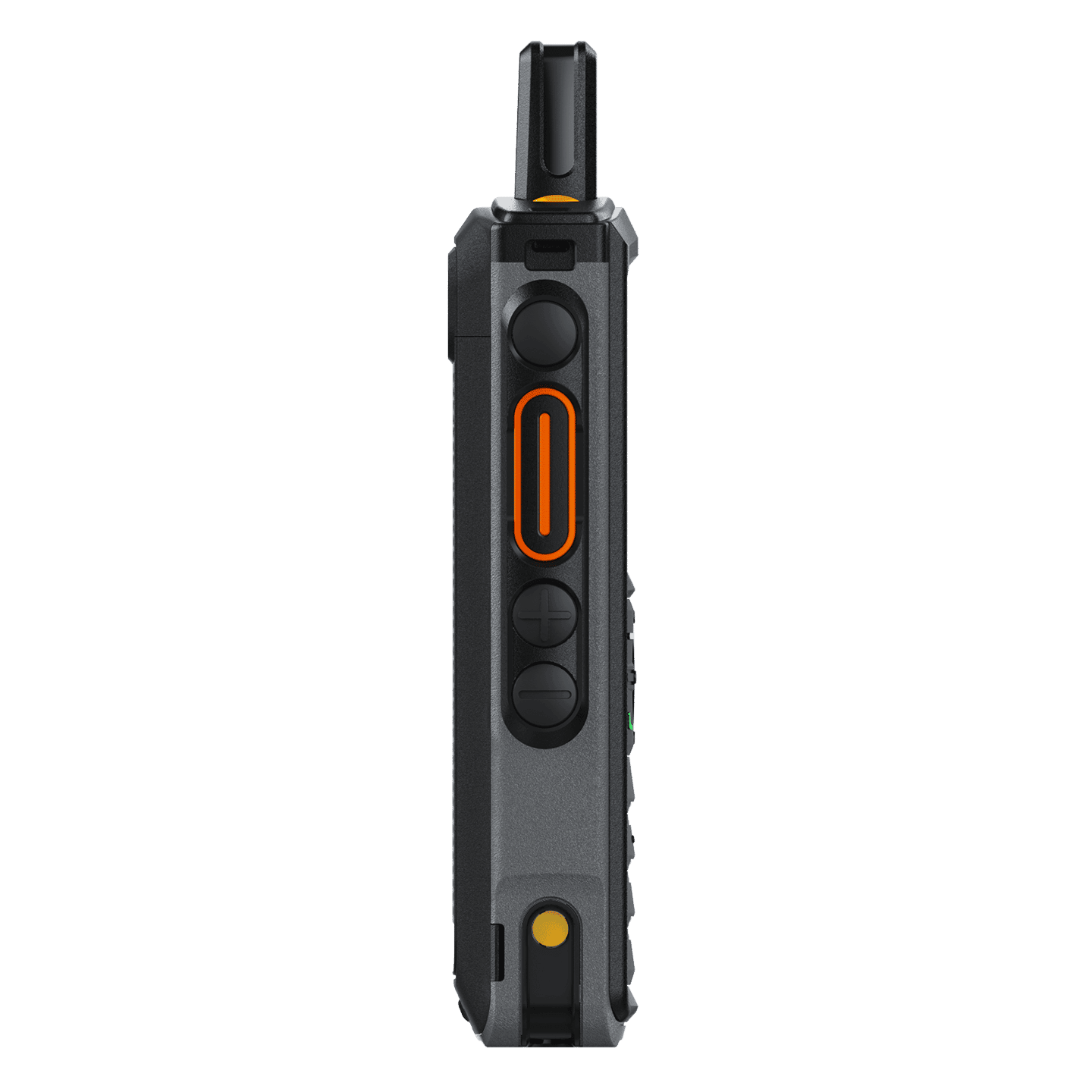

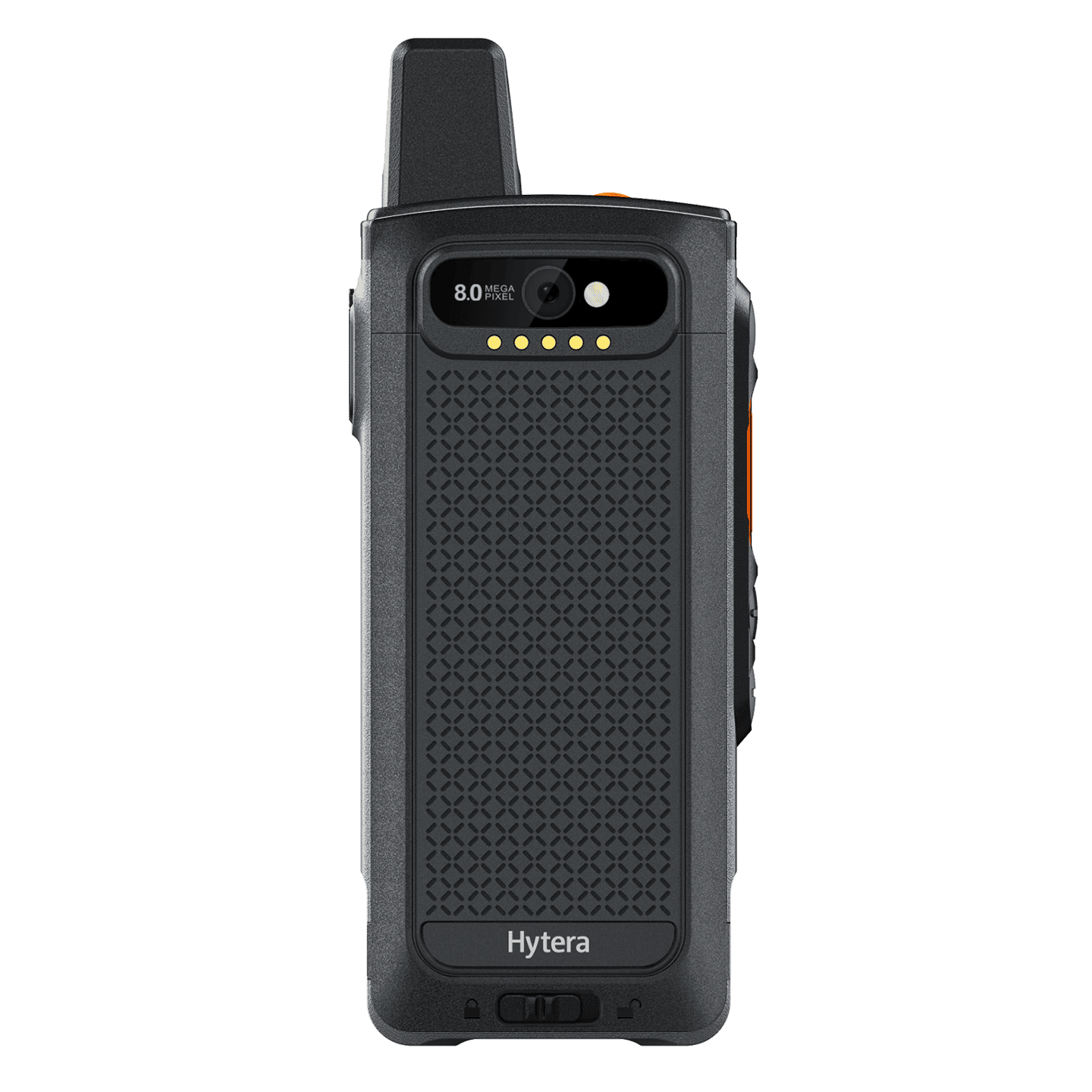

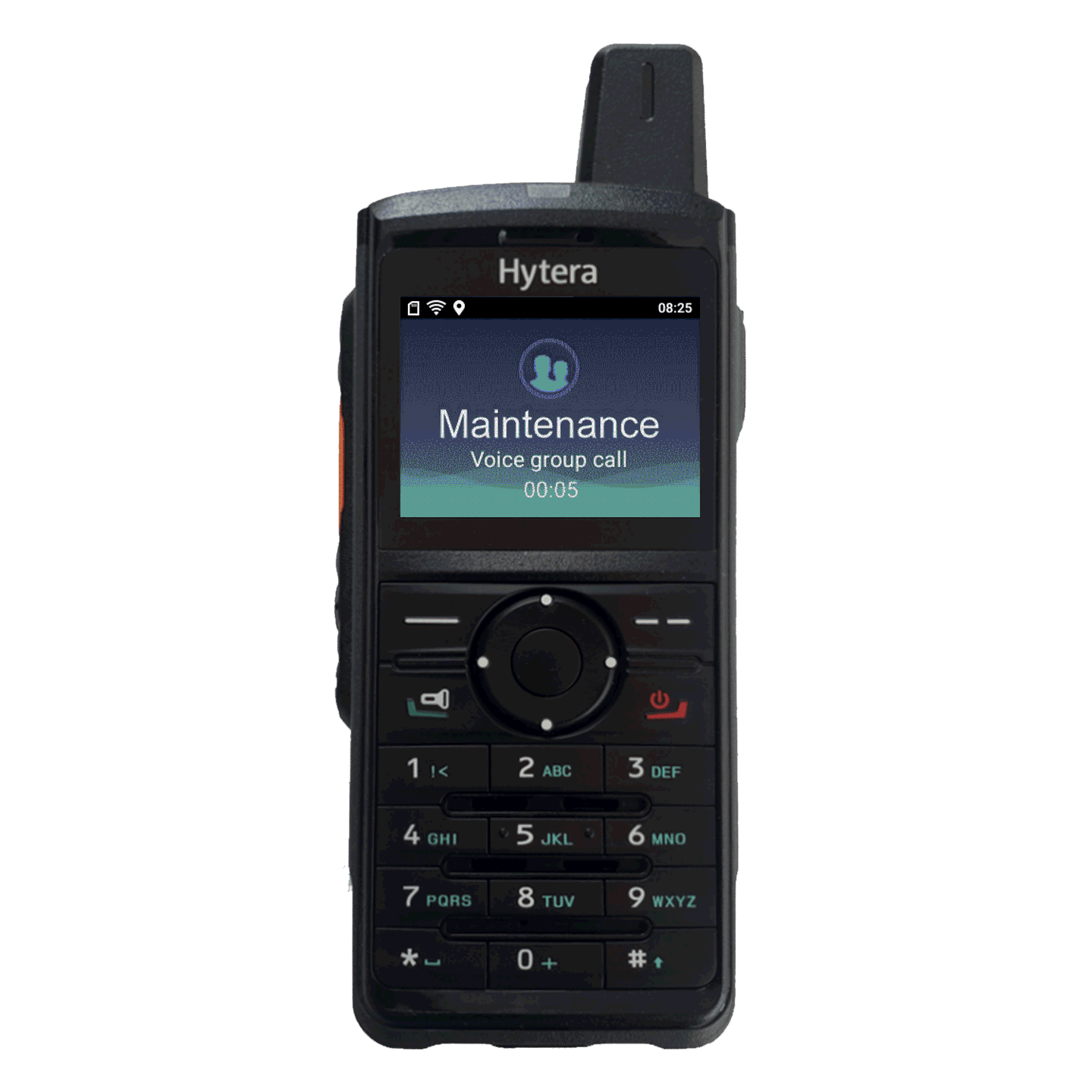

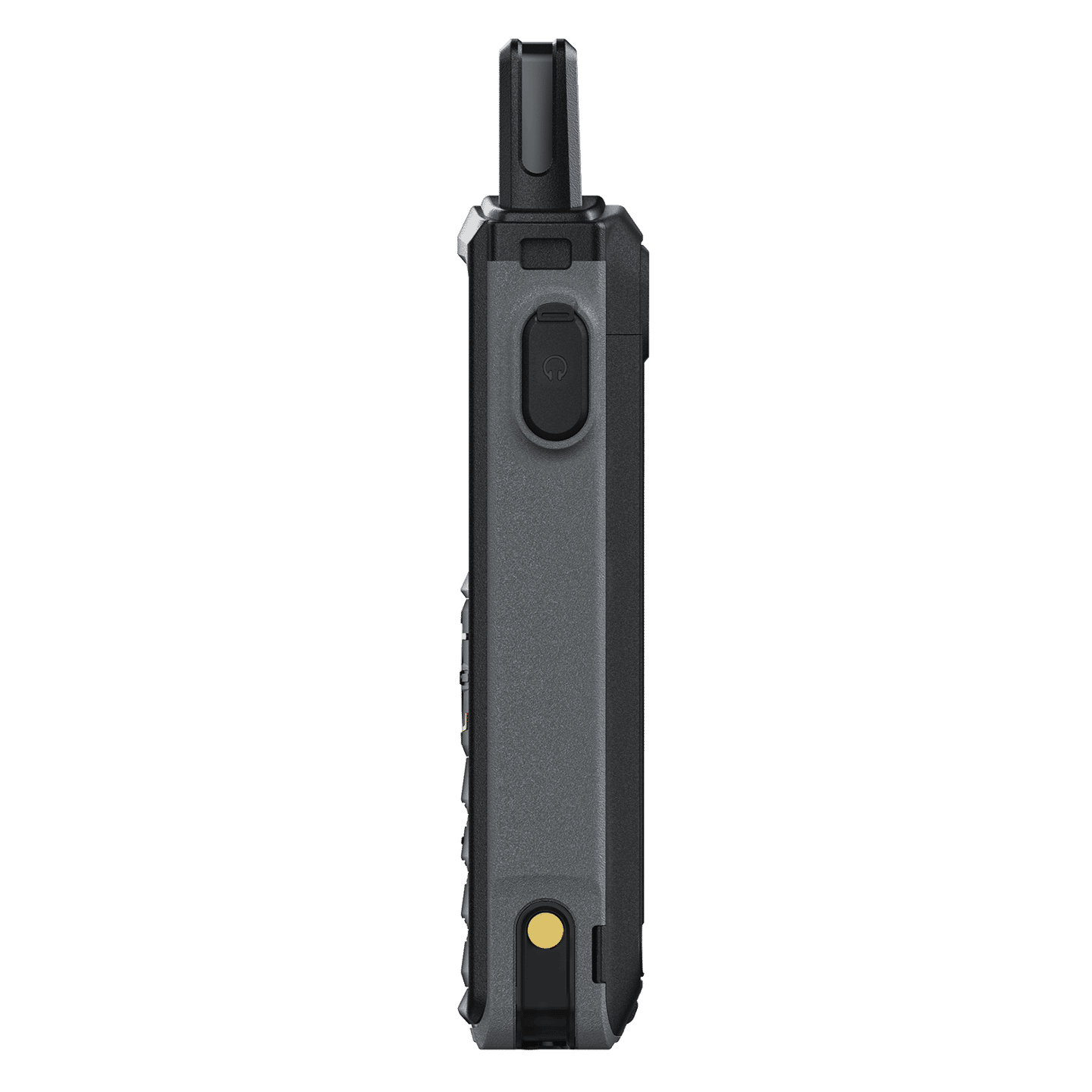

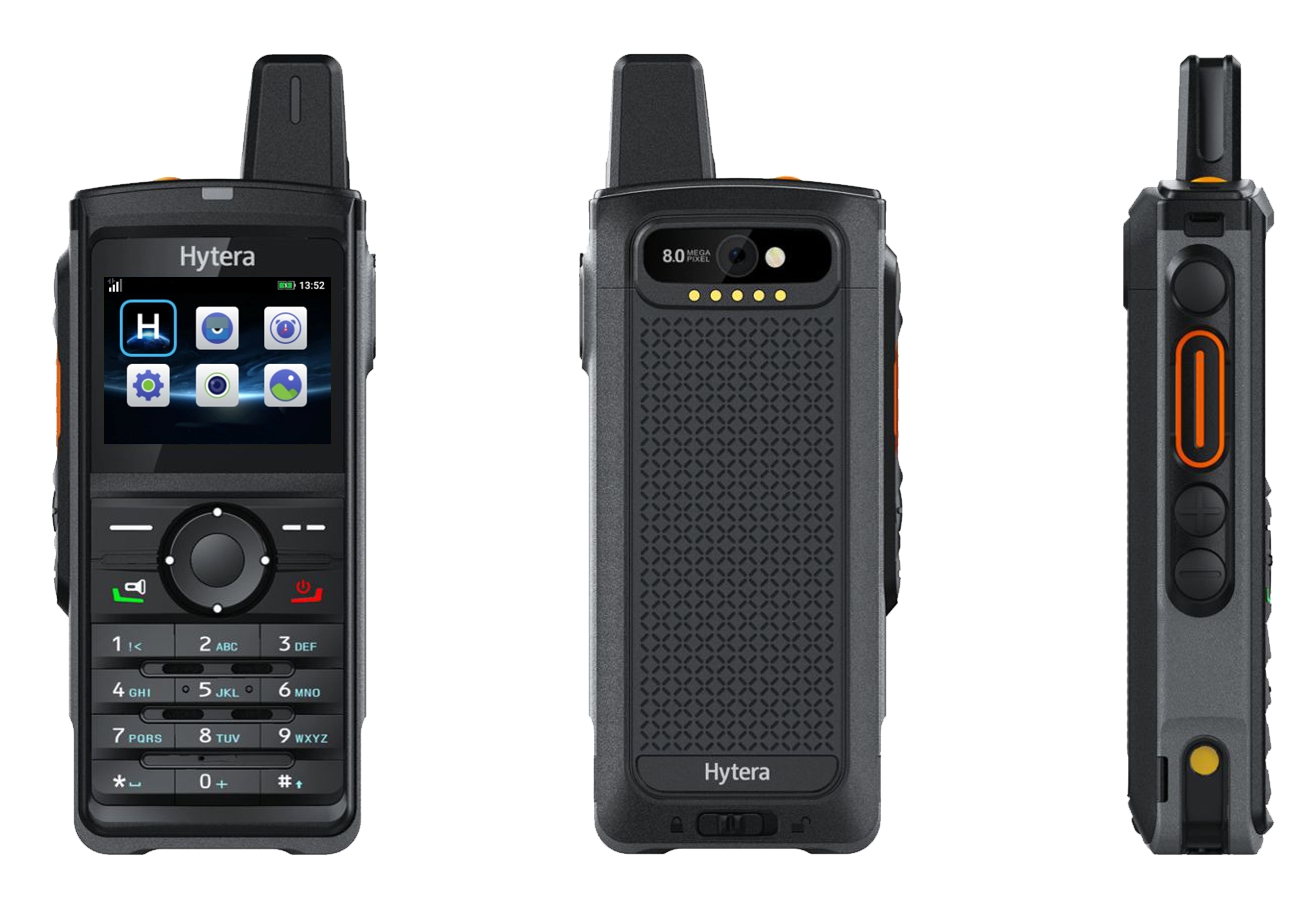

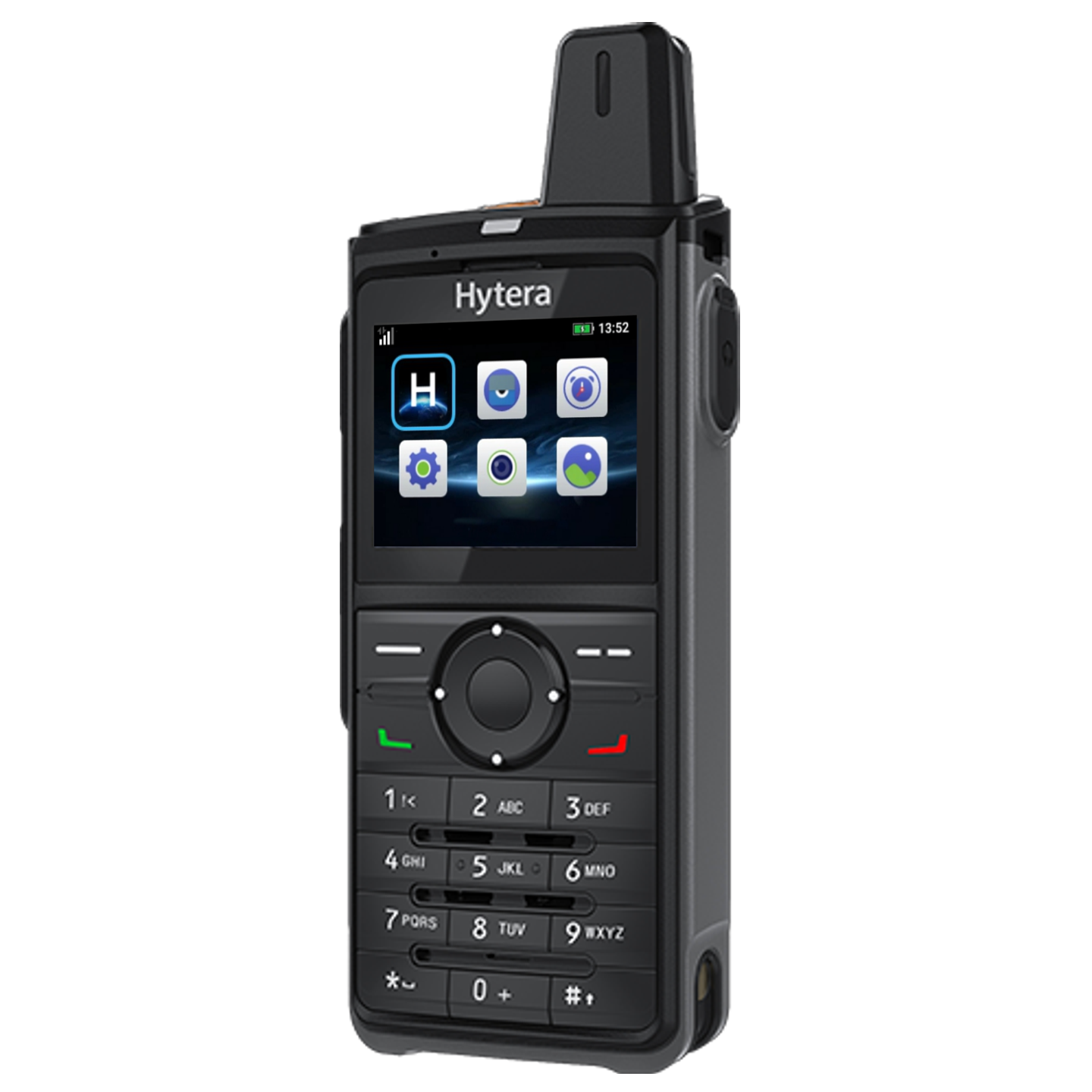

The Hytera PNC380S PoC device is a compact, rugged, and easy-to-operate handheld device that utilizes Wi-Fi and existing nationwide 3G/4G/LTE cellular networks for unlimited coverage and capacity. The PNC380S is designed for reliable business communications with instant group calling in the vehicle and on the job site. It is built based on the AT&T certified module and can be quickly deployed without the significant infrastructure costs of traditional radio systems.
- Nationwide coverage with Wi-Fi and 3G/4G/LTE networks
- AT&T Network Approved Device
- Supports dispatching, group calling, and location tracking
- Voice, Video, and Text communications
- Compact and rugged devices that are easy to use
- Car Kit available for safe use in vehicles.
The PNC380S is part of the Hytera HALO Nationwide Group Communications Solution that enables Push-to-Talk over Cellular over existing 3G/4G/LTE Mobile Network Operator infrastructure and Wi-Fi networks. Hytera HALO Dispatch is a powerful web-based application for efficient group communications and location tracking.
Technical Specifications
Network Standards
| LTE | FDD:B2/B4/B5/B7/B12/B13/B25/B26 |
| WCDMA | B1/B2/B4/B5/B8 |
| GSM | 850/1900 MHz |
| WLAN | 2.4GHz and 5GHz, 802.11 b/g/n |
| Bluetooth | BT 4.2 |
| Positioning System | GPS/A-GPS |
General Specifications
| Dimensions (H x W x D) | 5 27/32” x 2 3/8” x1 1/8” (148 x 60 x 28mm) |
| Weight (with battery) | 208g (with battery) |
| Memory | RAM: 1GB ROM: 8GB Extended: Micro SD/TF card, up to 32GB |
| SIM Card | Nano SIM 12.3mm x 8.8mm |
| Display | 2.0” 320×240 TFT/Non-touch |
| Ports | Micro USB 2.0 3.5mm Audio Jack Dock Charger Interface CAR KIT Connection Interface |
| Video and Images | Micro USB 2.0 3.5mm Audio Jack Dock Charger Interface CAR KIT Connection Interface Images: 8MP |
| Operating Voltage | 3.85V (Rated) |
| Battery | 4000mAh (Li-ion) |
| Battery Life | ≥24h (5-5-90 working cycle) |
Transceiver
| Audio Power Output | 1W (Rated) (Max: 2W) |
| Mic | Mic with Digital noise suppression |
Environmental
| Dust and Water Proof | IP67 Standard |
| Shock & Vibration | MIL-STD-810 G Standard |
| Drop Resistance | 1.2m |
| ESD | IEC 61000-4-2 ±8 kV (Contact) ±12 kV (Air) |
| Operation Temperature | -4F to +140F (-20C to +60C) |
| Storage Temperature | -22F to +158F (-30C to +70C) |
