NETWORKING

iCOM LTE & IP RADIO SYSTEMS

The range of Icom networking and LTE Transceiver wireless communication products are designed for government, industry and business use.

Icom’s innovative IP Advanced Radio System is designed to work through an existing wireless LAN and IP networks, making installation and configuration a very simple and low cost process.

Icom’s innovative IP advanced radio system is an efficient and secure technology working on existing or new IP/WLAN network with no need for license or antenna system.

The WLAN based system offers a scalable license-free communication system using existing wireless networking products infrastructure. The IP advanced radio system is thus particularly interesting for hotels and resorts, department stores, restaurants, factories, hospitals, tunnels, parking and underground buildings, museums, private communications onboard vessels.

Another option is Icom’s LTE radio which offers instantaneous communication over a pre-established cellular network. It does not require its own repeater or IP network and thereby reduces the cost of building and maintaining a wide area radio network.

LTE Radio Solutions

Communicate far and wide with LTE-CONNECT, Icom’s LTE radio solution. Using 4G and 3G networks, both the IP501H handheld and IP501M mobile allows for instantaneous push-to-talk communications throughout North America. The IP501’s are LTE radios, which provides telephone style conversations, packed with conventional two-way radio features. Multiple users can communicate at the same time with features like Individual, Group and All calls. These license-free radios do not require their own repeater or IP network. LTE-CONNECT operates on an Icom controlled, private and secure network. These new LTE radio solutions are perfect for those safety and security teams in need of simple, yet wide-area communication solutions.

Features

Full duplex communication
Priority interrupt calling
Small size
Safety features
Built-in Bluetooth®

Benefits

Secure transmission
Fixed low monthly cost
Distance is no longer an obstacle
No need to budget for infrastructure upgrades

Satellite Radios

Icom’s SATELLITE PTT (Push-To-Talk) is a two-way radio system using the Iridium® satellite network. This network allows you to use the IC-SAT100/M in remote, isolated areas without mobile phones or landline network infrastructure or if terrestrial network infrastructure is rendered unusable by human or natural disasters.

Benefits

Reliable satellite communications
Worldwide coverage
Flat monthly fee with unlimited talk-time
Simple operation with a press of a PTT
Distance is no longer an obstacle
Multiple talkgroup sizes support an unlimited number of subscribers
Seamless communication with real-time low-latency communication
Minimal infrastructure upgrades

Icom’s IP Advanced Radio System

Icom’s IP radio, allows users to quickly establish a high quality network in a building by programming and connecting an IP1000C to an existing WLAN network. You can upload groups and individuals to the network and control the entire system through a computer. The IP100FS software on the computer also has a map feature, which makes it easy to locate all users.

An IP radio system is ideal for users who want to create a radio network using their own wireless network. Many hotels and offices have already invested in a wireless network, making this system a smooth and cost-effective solution. Hospitals, hotels, restaurants, shopping centers and companies that conduct business indoors would benefit most from this system.

Benefits

Easy to use
Use your existing in-building Wi-Fi network
Up to 100 users can communicate at the same time
Encryption for extra security
Radios can communicate as far as your IP network
coverage allows
No license fees, no call charges

Bridges your Land Mobile Radio System

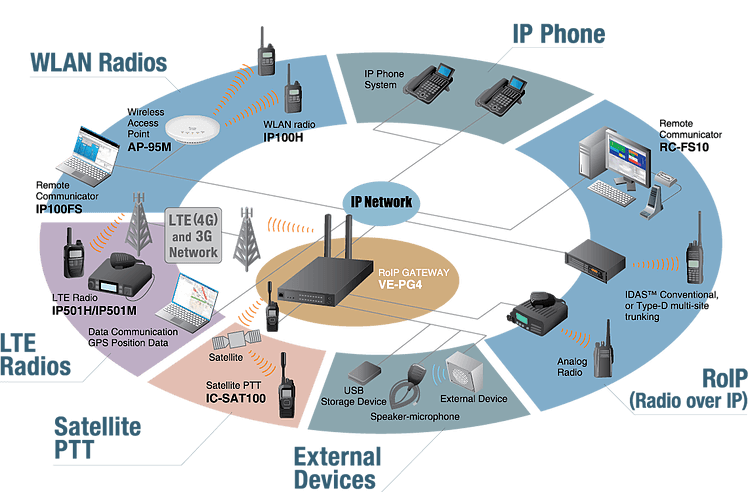

The VE-PG4 allows you to bridge almost any modern communications system to Icom’s universe of Network products and more.

Interconnect in a Variety of Ways:

LTE PTT Products
Wireless LAN radio products
Icom IDAS conventional and trunking systems
Analog Radio Systems
P25 systems
DMR systems
SIP Phone

Communication Links

LTE Transceiver Gateway

Install an LTE-CONNECT SIM card to the built-in LTE module and the VE-PG4 can interconnect the IP501H with conventional radio systems and IP100H terminals. Receive and transfer GPS position information from the IP501H to a PC.

Bridge Connection Between Radio Systems

The VE-PG4 interconnects with two or more radio systems, even when the systems use different bands. All received audio is bridged to opposing radio system, so a radio user can talk to all connected radio users. The built-in digital voice converter converts analog audio to IDAS™ compatible digital audio.

IP Phone Interconnect

The built-in Simplified SIP server can assign extension numbers to IDAS™ radio terminals, IP advanced radio terminals, and groups of analog radio users as well as IP phones. A radio user can initiate phone calls. Phone users can make individual or group calls to connected radio users.

Multi-Site Connection Between VE-PG4s

Connect two or more VE-PG4s through LAN or LTE (4G) and 3G networks. The communication area can be flexibly expanded, and dispersed radio sites can be connected, regardless of distance or radio system used.

External Equipment Connection

Public address system, siren, warning light and other external devices can be connected to the VE-PG4. When detecting an emergency signal, users can start emergency notification from either a digital transceiver, IP transceiver or public address system.
